Sentinel-3 Cal/Val

The main advantage of the PFAC’s geographical location of ESA is that it allows calibration of Sentinel-3A and Sentinel-3B with diverse and independent calibration techniques. Let us examine, for example, Sentinel-3A Pass No.14. This is an ascending orbit. As the satellite approaches the calibration facility from the south, the sea-surface calibration is employed with the Gavdos Cal/Val site. Nine seconds later, the transponder calibration takes place at the CDN1 Cal/Val site on the mountains of west Crete at an elevation of 1100m.

For the descending Sentinel-3B Pass No. 335, a similar procedure takes place but with a reverse order, that is transponder first and a few seconds later sea-surface calibrations. To strengthen and safeguard results of sea-surface calibrations, a new sea-surface Cal/Val site (“SUG1”) in the south coast of Crete has been established. This site has been operational as of 5-Mar-2021 (see also Cal/Val Techniques: Sea-Surface).

Sea-surface calibration is also carried out for Sentinel-3A Pass No. 335 (with the Gavdos Cal/Val site) and for the Pass No. 278 (with the CRS1 Cal/Val site). Also, Sentinel-3B Pass No. 71 and Pass No. 14 are also calibrated using ground-truth measurements based upon the RDK1 and CRS1 Cal/Val sites, respectively.

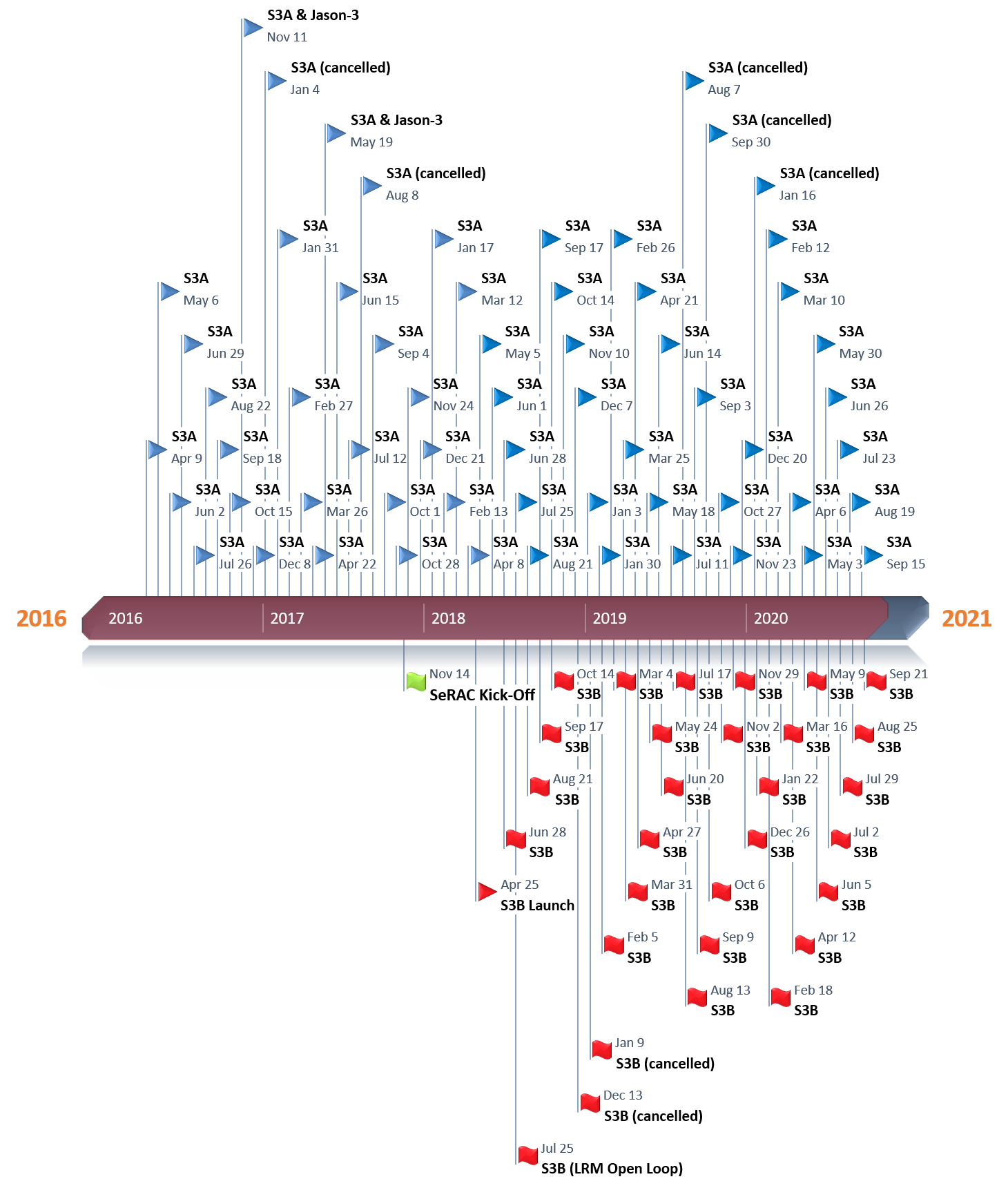

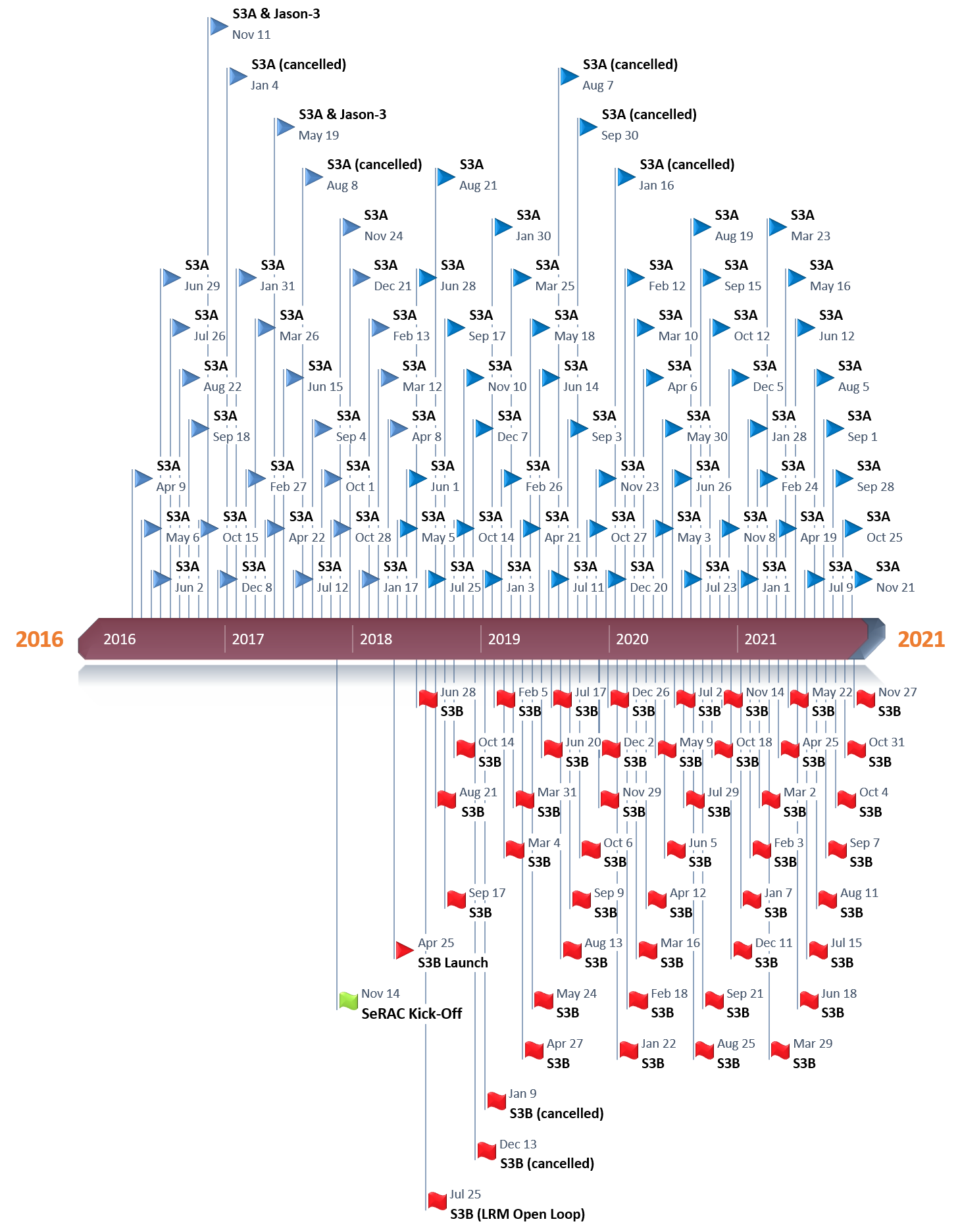

The following transponder calibrations have been carried out so far at the CDN1 Cal/Val site for Sentinel-3A and Sentinel-3B:
